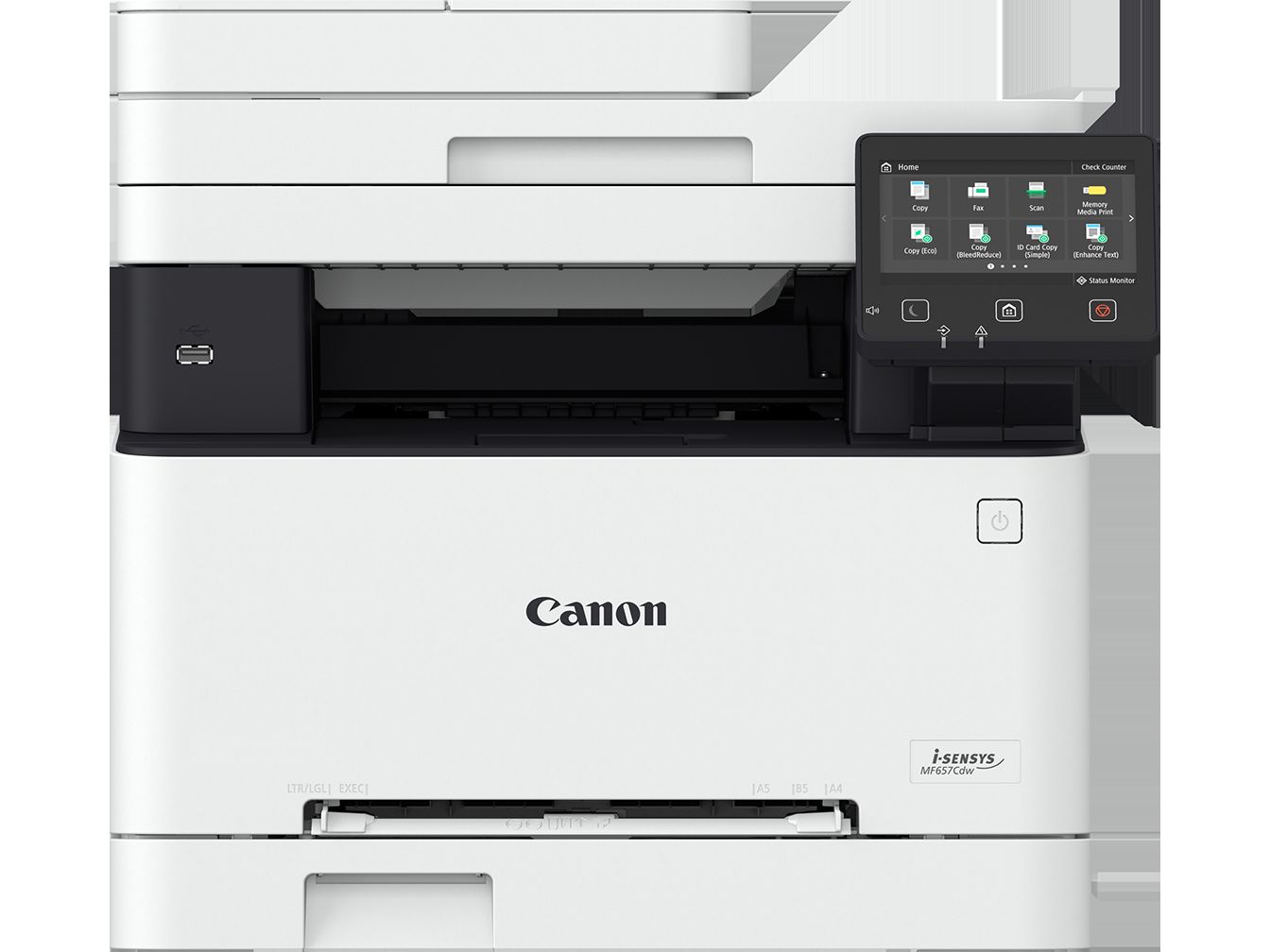

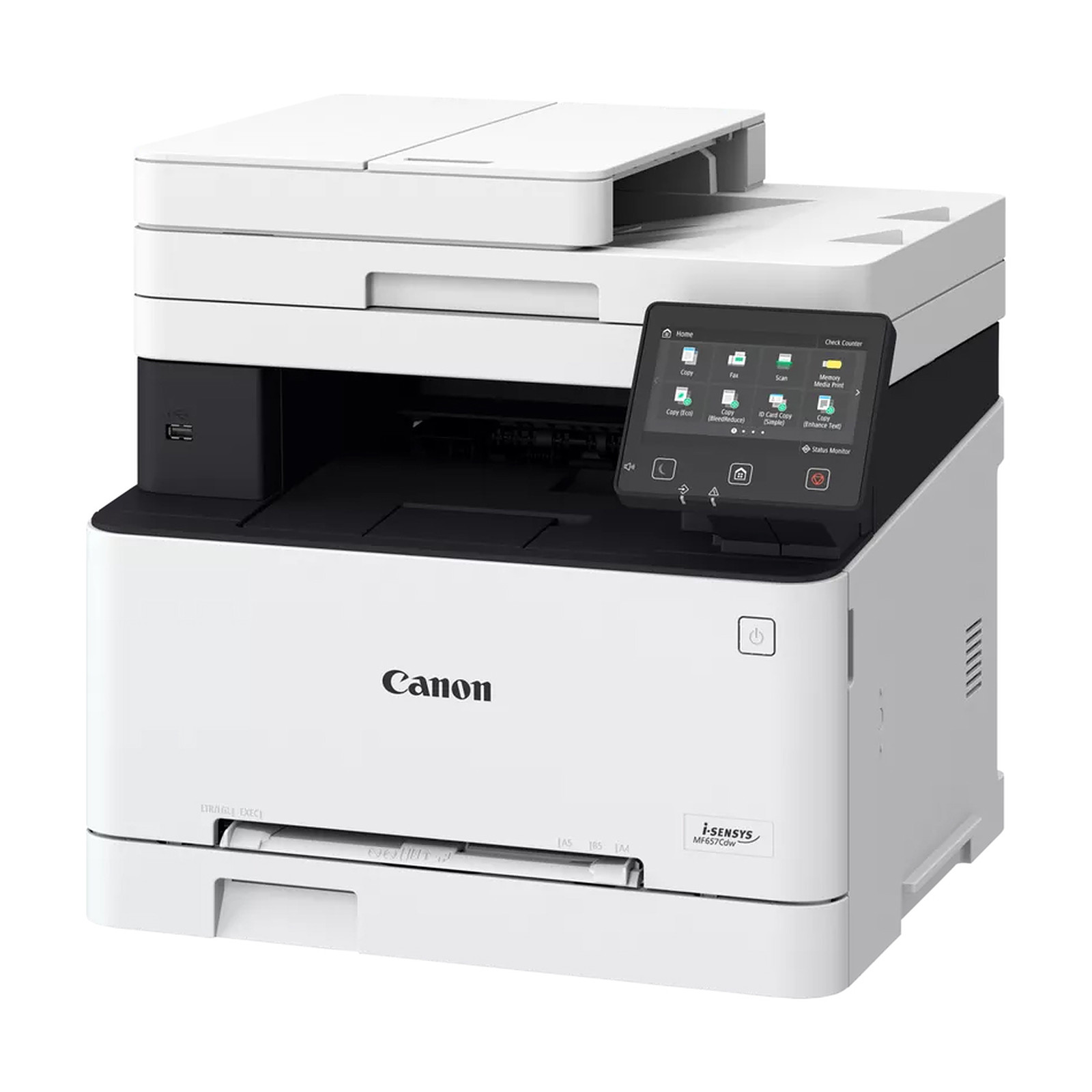

Canon i-SENSYS MF657Cdw A4 Colour Multifunction Laser Printer

General Specifications

• Machine Type
  Colour Laser All-In-One
• Available Functions
  Print, Copy, Scan and Fax

Print Specifications

• Print Speed
  Single sided: Up to 21 ppm (A4)
  Up to 38 ppm(A5-Landscape)
  Double sided: Up to 12.7 ipm (A4)
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Approx. 13 seconds or less from power on
• First-Print-Out Time
  Colour approx.: 10.5 seconds or less
  Mono approx.: 10.4 seconds or less
• Printer Languages
  UFRII, PCL 5c, PCL6, Adobe® PostScript3
• Fonts
  93 PCL fonts
  136 PostScript fonts
• Print Margins
  5 mm-top, bottom, left and right
  10 mm-top, bottom, left and right (Envelope)
• Toner Saver Mode
  Yes
• Advanced Printing Features
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  Print from Cloud (Dropbox, GoogleDrive, OneDrive)¹ (PDF/JPEG)
  Barcode Print
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Copy Specifications

• Copy Speed
  Single sided (A4): Up to 21 ppm
  Double sided (A4): Up to 12.7 ppm
• First-Copy-Out Time
  ADF (A4):
  Colour Approx. 13.4 seconds or less
  Mono Approx. 11.4 seconds or less
  Platen (A4):
  Colour Approx. 14.5 seconds or less
  Mono Approx. 12.3 seconds or less
• Copy Resolution
  Up to 600 x 600 dpi
• Copy Modes
  Text/Photo/Map (Default), Text/Photo/Map (quality), Printed Image, Text
• Double Sided Copying
  2-sided to 2-sided (Automatic)
• Multiple Copies
  Up to 999 copies
• Reduction / Enlargement
  25-400% in 1% increments
• Other Features
  Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy

Scan Specifications

• Standard Type
  Colour
• Scan Resolution
  Optical: Up to 600 x 600 dpi
  Enhanced: Up to 9600 x 9600 dpi
• Scan Speed
  Single sided mono: 27ipm (300x600dpi)
  Single sided colour: 14ipm (300x600dpi)
  Double sided mono: 47ipm (300x600dpi)
  Double sided colour: 27ipm (300x600dpi)
• Colour Scanning Depth
  24 bit/24 bit (input/output)
• Greyscales
  256 levels
• Compatibility
  TWAIN, WIA, ICA
• Maximum Scan Width
  216mm
• Scan to E-mail
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF/Encrypted PDF4/PDF (Digital signature)
• Scan to PC
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF/Encrypted PDF4/PDF (Digital signature)
• Scan to USB Memory Key
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF/Encrypted PDF4/PDF (Digital signature)
• Scan to FTP
  TIFF/JPEG/PDF/Compact PDF/Searchable PDF/Encrypted PDF4/PDF (Digital signature)
• Scan to Cloud
  TIFF/JPEG/PDF/PNG
• iFAX
  ITU-T.37

Fax Specifications

• Modem Speed
  33.6 Kbps (Up to 3 seconds/page)
• Receive Mode
  Fax only, Fax/Tel Auto Switch, Answer Mode, Manual
• Fax Resolution
  Standard: 200 x 100 dpi
  Fine: 200 x 200 dpi
  Super fine: 200 x 400 dpi
  Ultra fine: 400 x 400 dpi
• Fax Memory
  Up to 512 pages
• Speed Dials
  Up to 281dials
• Group Dials/Destinations
  Max. 299 dials / Max. 299 destinations
• Sequential Broadcast
  Max. 310 destinations
• Memory Backup
  Permanent fax memory backup (Backup with flash memory)
• Double Sided Faxing
  Yes (Transmit and Receive)
• Other Features
  Sender's Name (TTI), Direct Send, TX Report, Sequential Broadcasting

Media Handling

• Scanner Type
  Platen, 2-sided ADF (single pass)
• Paper Input (Standard)
  250-sheet cassette
  1-sheet manual feed slot
  50-sheet ADF
• Maximum Paper Input Capacity
  251 sheets
• Paper Output
  100-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  Cassette:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216 x 355.6 mm.

  ADF:
  A4, A5, B5, Legal, Letter, Statement, Custom sizes: Min. 128 x 139.7 mm Max 215.9 x 355.6 mm
• Media Weights
  Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  ADF: 50 to 105 g/m
• Double Sided Printing
  Automatic
  Cassette:
  A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K Custom size - Min. 182 x 257 mm Max. 216 x 355.6 mm
  60 to 200 g/m

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows^® 11 / Windows^® 10 / Windows^® 8.1 / Server® 2022
  Mac OS X version 10.11 & up
  Linux
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
  Scan:
  Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
  E-mail/I-Fax: SMTP (send), POP3 (receive)
  Pull Scan: TCP/IP

  Management:
  SNMPv1, SNMPv3 (IPv4,IPv6)

  Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
  Access Point Mode:
  WPA2-PSK (AES)
• Software and Printer Management
  MF Scan Utility,
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
  Application Library

General Features

• Recommended Monthly Print Volume
  250 - 2,500 pages per month
• Duty Cycle
  Max. 30,000 pages per month
• Processor Speed
  800MHz x 2
• Memory
  1GB

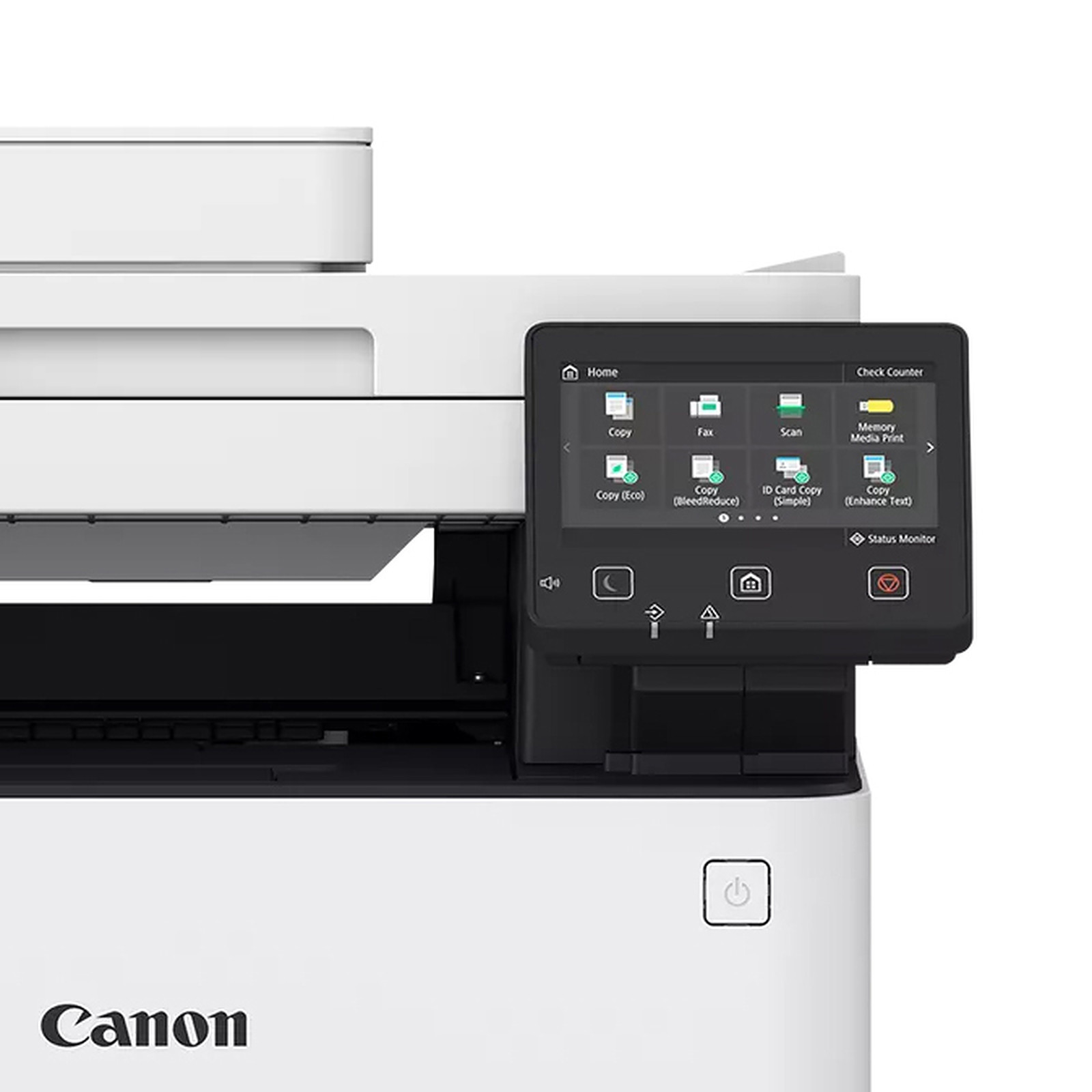

• Control Panel
  12.7 cm LCD Colour Touch Screen
• Dimensions with Trays (W x D x H)
  451 mm x 460 mm x 360 mm
• Installation Space (W x D x H)
  783 mm x 1,211 mm 789 mm
• Weight
  Approx. 22.6 Kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity: 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 850 W
  Active printing: Approx. 370W
  Standby: Approx. 11.0 W
  Sleep mode: Approx. 0.8 W
  Typical Electricity Consumption (TEC): 0.19 kWh/week
  For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx
• Noise Levels
  Sound Pressure:
  Active: Simplex 51 dB / Duplex 50 dB
  Standby: Inaudible

  Sound Power:
  Active: Simplex 65dB or less / Duplex 67 dB or less
  Standby: Inaudible

Consumables

• Cartridges
  Cartridge 067 Black (1,350 pages)
  Cartridge 067H Black (3,130 pages)
  Cartridge 067 Cyan (1,250 pages)
  Cartridge 067H Cyan (2,350 pages)
  Cartridge 067 Magenta (1,250 pages)
  Cartridge 067H Magenta (2,350 pages)
  Cartridge 067 Yellow (1,250 pages)
  Cartridge 067H Yellow (2,350 pages)

Accessories & Options

• Items
  TEL 6 Kit Long Cord (Telephone handset)
  Barcode Printing Kit-E1E
  Send PDF Security Feature Set-E1
