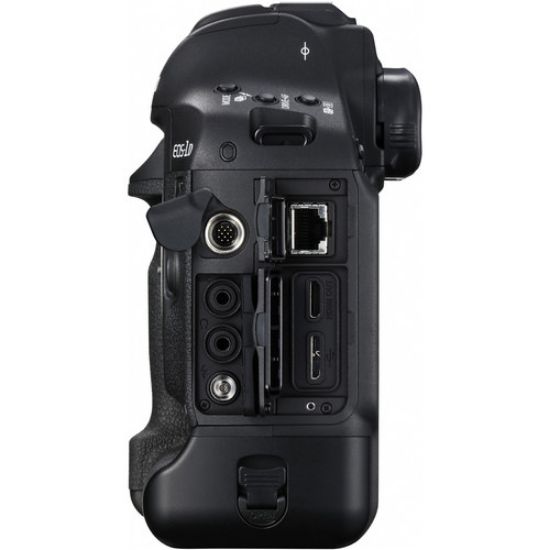

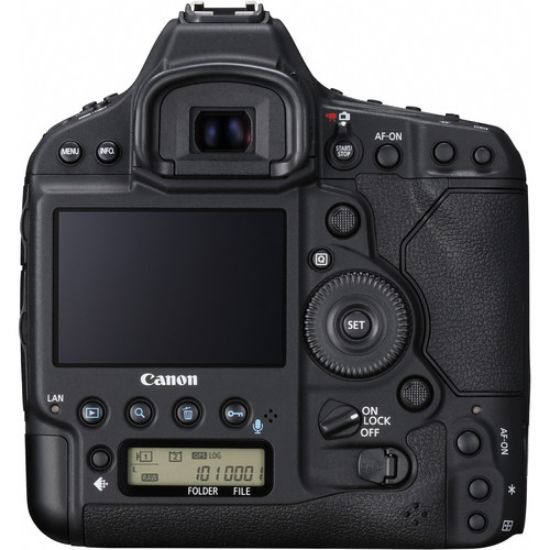

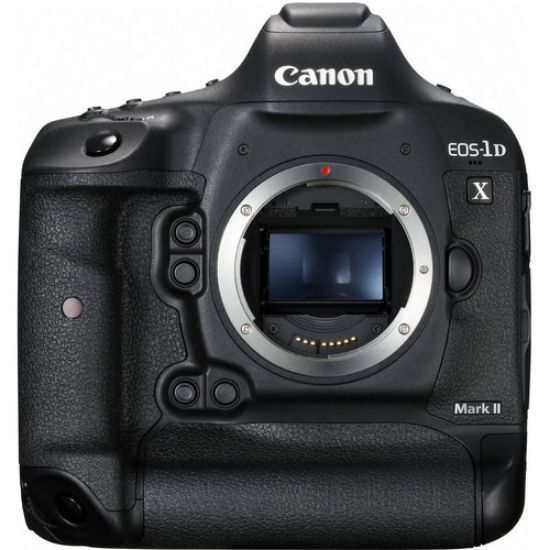

Canon EOS 1DX Mark II DSLR Camera

Specifications in detail

IMAGE SENSOR

• Type

  35.9 x 23.9 mm CMOS

• Effective Pixels

  Approx. 20.2 megapixels

• Total Pixels

  Approx. 21.5 megapixels

• Aspect Ratio

  3:2

• Low-Pass Filter

  Built-in/Fixed

• Sensor Cleaning

  EOS integrated cleaning system

• Type

  Dual "DIGIC 6+"

• Lens Mount

  EF (excludes EF-S / EF-M lenses)

• Focal Length

  Equivalent to 1.0x the focal length of the lens

• Type

  TTL-secondary image-forming phase-difference detection system with dedicated AF sensor

• AF System/ Points

  61 Point / max of 41 cross-type AF points inc 5 dual cross type at f/2.8 and 61 points / 21 cross-type AF points at f/8¹




  The number of cross-type AF points will differ depending on the lens.

• AF working range

  EV -3 - 18 (at 23°C & ISO100)

• AF Modes

  One Shot




  AI Servo AF (AI Servo AF III+)

• AF Point Selection

  Automatic selection: All 61 point AF (based on EOS iTR AF setting)




  Manual selection: Single point AF (selectable points 61, 15, 9 or cross type only points selectable)




  Manual selection: Sngle point Spot AF




  Manual selection: AF point Expansion 4 points (up, down, left, right)




  Manual selection: AF point Expansion surrounding 8 points




  Manual selection: Zone AF (all AF points divided into 9 focusing zones)




  Manual selection: Large Zone AF (all AF points divided into 3 focusing zones)




  AF points can be selected separately for vertical and horizontal shooting

• AF Lock

  Locked when shutter button is pressed half way or AF ON is pressed in One Shot AF mode

• AF Assist Beam

  Emitted by an optional dedicated Speedlite

• Manual Focus

  Selected on lens

• AF Microadjustment

  Manual: Enter adjustment +/- 20 steps (wide and tele setting for zoom lenses)




  Adjust all lenses by same amount




  Adjust up to 40 lenses individually




  Adjustments remembered for lens by serial number

• Metering modes

  Approx. 360,000-pixel RGB+IR metering sensor, 216-zone metering. EOS Intelligent Subject Analysis system




  (1) Evaluative metering (linked to All AF point)




  (2) Partial metering (approx. 6.2% of viewfinder at centre)




  (3) Spot metering:




  Center spot metering (approx. 1.5% viewfinder at centre)




  AF point-linked spot metering




  Multi-spot metering




  (4) Centre weighted average metering

• Metering Brightness Range

  EV 0 - 20 (at 23°C, ISO100, with evaluative metering)

• AE Lock

  Auto: In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved




  Manual: By AE lock button in P, Av, Tv and M modes

• Exposure Compensation

  +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

• AEB

  +/-3 EV in 1/3 or 1/2 stop increments

• Anti-flicker shooting

  Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease

• ISO Sensitivity*

  Auto 100-51200 (in 1/3-stop or whole stop increments)




  ISO can be expanded to L:50, H1: 102400, H2: 204800, H3: 409600

• Type

  Electronically-controlled focal-plane shutter

• Speed

  30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

• Shutter Release

  Soft touch electromagnetic release

• Type

  Auto white balance with the imaging sensor

• Settings

  AWB (Ambeince priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting




  White balance compensation:




  1. Blue/Amber +/-9




  2. Magenta/ Green +/-9

• Custom White Balance

  Yes, 5 setting can be registered

• WB Bracketing

  +/-3 levels in single level increments




  3, 2, 5 or 7 bracketed images per shutter release




  Selectable Blue/Amber bias or Magenta/ Green bias

• Type

  Pentaprism

• Coverage (Vertical/Horizontal)

  Approx. 100%

• Magnification

  Approx. .76x¹

• Eyepoint

  Approx. 20mm (from eyepiece lens centre)

• Dioptre Correction

  -3 to +1 m-1 (dioptre)

• Focusing Screen

  Interchangeable. Standard Focusing Screen Ec-C6 provided. Can be changed to Ec-A, B or L

• Viewfinder Information

  AF information: Single/Spot AF points, AF Frame, AF status, Focus indicator, AF mode, AF point selection, AF point registration




  Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, flash metering, spot metering circle, exposure warning, AEB, metering mode, shooting mode




  Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.




  Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).




  Composition information: Grid, Electronic level




  Other information: Battery check, Warning symbol, Flicker Detection, drive mode, white balance, JPEG/RAW indicator

• Depth of field preview

  Yes, with Depth of Field preview button

• Type

  8.11cm (3.2") Clear View LCD II, approx. 1620K dots

• Coverage

  Approx. 100%

• Viewing Angle (horizontally/vertically)

  Approx 170° vertically and horizontally

• Brightness Adjustment

  Manual: Adjustable to one of seven levels

• Touch-screen operations

  Capacitive method. During Live View shooting and Movie shooting for AF Point Selection / Switching and for Magnified View. Touch-screen can be disabled

• Display Options

  (1) Quick Control Screen




  (2) Camera settings




  (3) Dual Axis Electronic Level




  (4) Custom Quick Control Screen

• Modes

  E-TTL II Auto Flash, Metered Manual

• X-sync

  1/250sec

• Flash Exposure Compensation

  +/- 3EV in 1/3 increments with EX series Speedlites

• Flash Exposure Bracketing

  Yes, with compatible External Flash

• Flash Exposure Lock

  Yes

• Second Curtain Synchronisation

  Yes

• HotShoe/ PC terminal

  Yes/ Yes

• External Flash Compatibility

  E-TTL II with EX series Speedlites, wireless multi-flash support

• External Flash Control

  via camera menu screen

• Modes

  Program AE , Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom (x3)

• Picture Styles

  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

• Colour Space

  sRGB and Adobe RGB

• Image Processing

  Highlight Tone Priority




  Auto Lighting Optimizer (4 settings)




  Long exposure noise reduction




  High ISO speed noise reduction (4 settings)




  Lens optical correction¹:




  - Peripheral illumination correction




  - Chromatic aberration correction




  - Distortion correction (during or after still photo shooting)




  - Diffraction correction (during or after still photo shooting)




  - Digital Lens Optimizer (after still photo shooting)




  Resize to M1, M2 or S²




  Cropping: JPEG images can be cropped (Aspect ratio is fixed - 3:2 or 2:3)




  - 41 cropping sizes selectable, from 13% to 95% (diagonal)




  - Switch between vertical and horizontal cropping orientation




  - Cropping frame can be moved using touch screen operation




  RAW image processing³




  Multiple exposure

• Drive modes

  Single, Continuous High, Continuous Low, Silent single, Silent Continous High, Silent Continuous Low, Self timer (2s+remote, 10s+remote)

• Continuous Shooting

  Max. Approx. 14fps. with full AF / AE tracking, speed maintained for up to unlimited number of JPEGs or 170 RAW images, with CFast 2.0™ card¹ ² ³




  Max. 16fps in Live View mode with mirror locked up and exposure and AF locked on first frame

• Type

  Electronic viewfinder with image sensor

• Coverage

  Approx. 100% (horizontally and vertically)

• Frame Rate

  29.97 fps

• Focusing

  Manual Focus (Magnify the image 5x or 10x at any point on screen)




  Autofocus: Dual Pixel CMOS AF (Face Detection and Tracking AF, FlexiZone - Single), available with all EF lenses

• Metering

  Real-time evaluative metering with image sensor (315-zone)




  Partial metering (approx. 6.5% of Live View screen)




  Spot metering (approx. 2.8% of Live View screen)




  Center-weighted average metering




  Active metering timer can be changed

• Display Options

  3 levels available through INFO. button: No information, Basic shooting information, Histogram




  Multiple Exposure status also avaible in Multiple Exposure mode

• Still Image Type

  JPEG: 10 compression options




  RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition)




  Complies with Exif 2.30 and Design rule for Camera File system 2.0




  Complies with Digital Print Order Format [DPOF] Version 1.1

• RAW+JPEG simultaneous recording

  Yes, any combination of RAW + JPEG possible, separate formats to separate cards possible

• Image Size

  JPEG:




  (L) 5472x3648, (M1) 4368x2912, (M2) 3648x2432, (S) 2736x1824




  RAW:




  (RAW) 5472x3648, (M-RAW) 4104x2736, (S-RAW) 2736x1824

• File Numbering

  (1) Consecutive numbering




  (2) Auto reset




  (3) Manual reset

EOS Movie

• Movie Type

  MOV Video: 4K (17:9) 4096 x 2160 - Motion JPEG (internal recording only), Full HD - MPEG4 AVC / H.264 variable (average) bit rate, Audio: Linear PCM




  MP4 Video: Full HD (16:9) 1920 x 1080 - MPEG4 AVC/H.264, Audio: AAC

• Frame Rate

  119.9p/59.94p/29.97p/24.00p/23.98p (with NTSC)




  100.0p/50.00p/25.00p/24.00p (with PAL)




  119.9p/100.0p in Full HD quality High Frame Rate movie only

• Colour Sampling (Internal recording)

  4K - YCbCr4:2:2 (8 bit)




  Full HD - YCbCr4:2:0 (8 bit)

• Movie Length

  4K and Full HD - Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT CF or CFast card

• High Frame Rate Movie

  MOV Video: Full HD - 1920 x 1080 at 100fps or 119.9fps




  Recorded as 1/4-speed slow motion movie




  Single scene maximum recording up to 7min 29sec.

• 4K Frame Grab

  8.8 megapixel JPEG still image frame grab from 4K movie possible

• Bitrate / Mbps

  MOV:




  4K (59.94p/50.00p): Approx. 800 Mbps




  4K (29.97p/25.00p/24.00p/23.98p): Approx. 500 Mbps




  Full HD (119.9p/100.0p)/ALL-I: Approx. 360 Mbps




  Full HD (59.94p/50.00p)/ALL-I: Approx. 180 Mbps




  Full HD (59.94p/50.00p)/IPB Approx. 60 Mbps




  Full HD (29.97p/25.00p/24.00p/23.98p)/ALL-I: Approx. 90 Mbps




  Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps




  MP4:




  Full HD (59.94p/50.00p)/IPB (Standard): Approx. 60 Mbps




  Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps




  Full HD (29.97p/25.00p)/IPB (Light): Approx. 12 Mbps

• Microphone

  Built-in monaural microphone (48Khz, 16 bit x 2 ch)

• HDMI Display

  External monitor only, External Monitor only without information display or Simultaneous on camera and external monitor

• HDMI Output

  Full HD recording only, uncompressed YCbCr 4:2:2, 8-bit, sound output via HDMI is also possible

• Focusing

  Dual Pixel CMOS AF with Face Detection and Tracking AF, Movie Servo AF




  Manual Focus

• ISO

  4K - Auto: 100-12800, H: 25600, H1: 51200, H2: 102400, H3: 204800




  Full HD - Auto: 100-25600, H: 51200, H1: 102400, H2: 204800

• Geotag Information

  Longitude, Latitude, Elevation, Coordinated Universal Time

• Positioning Modes

  Mode 1: Camera continues to receive GPS signals at regular intervals when power is switched off




  Mode 2: GPS is switched off when power is switched off

• Position Update Timing

  Intervals of 1 sec., 5 sec., 10 sec., 15 sec., 30 sec., 1 min., 2 min. or 5 min.

• Position Accuracy

  Within approx. 30 m/98.4 ft (Based on good GPS satellite reception conditions on a clear day with no surrounding obstructions)

• Compatible Satellite Navigation Systems

  • GPS satellites (USA)




  • GLONASS satellites (Russia)




  • Quasi-Zenith Satellite Michibiki (Japan)

• Log Files Format

  NMEA Format. One log file per day based

• Log File Usage

  Transfer log data to memory card and copy it to a computer




  Use Map Utility to append the log file to the images

• Digital Compass

  Not provided

• Custom Functions

  34 Custom Functions with 104 settings

• Metadata Tag

  User copyright information (can be set in camera)




  Image rating (0-5 stars)




  Image transfer with caption (Caption registered with EOS Utility)

• Water/ Dust resistance

  Yes

• Voice Memo

  Up to 30sec per image - 48Khz/16 Bit or 8Khz/8 Bit

• Playback zoom

  1.5x - 10x

• Display Formats

  (1) Single image




  (2) Single image with information (2 levels - Basic and Detailed)




  Lens information and RGB histogram




  White balance




  Picture Style




  Color space and noise reduction




  Lens optical correction




  GPS information




  (3) 4 image index




  (4) 9 image index




  (5) 36 image index




  (6) 100image index




  (7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating)




  (8) Movie edit




  (9) RAW processing




  (10) Rating

• Slide Show

  Image selection: All images, by Date, by Folder, Movies, Stills, Protected images, Rating




  Playback time: 1/2/3/5/10 or 20 seconds




  Repeat: On/Off

• Histogram

  Brightness: Yes




  RGB: Yes

• Highlight Alert

  Yes

• Image Erase

  Single image, Selected images, Folder, Card

• Image Erase Protection

  Erase protection of Single image, Folder or Card

• Self Timer

  2 or 10 sec.

• Menu Categories

  (1) Shooting menu 1 - 6




  (2) AF Menu 1 - 5




  (3) Playback menu 1 - 3




  (4) Setup menu 1 - 4




  (5) Custom Functions menu 1 - 8




  (6) My Menu (1 - 5 user selectable)

• Menu Languages

  25 Languages




  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

• Firmware Update

  Update possible by the user (Camera, Lens, WFT, External Speedlite)

• Computer

  SuperSpeed USB 3.0

• Other

  HDMI mini out (Type C, HDMI-CEC compatible), System Extension Terminal (for WFT-E8 and WFT-E6), External Microphone In / Line In (Stereo mini jack), Headphone socket (Stereo mini jack), RJ-45 (gigabit ethernet), N3-type terminal (remote control terminal)

• Type

  1x CompactFlash Type I (UDMA 7 compatible) (Incompatible with Type II and Microdrive)




  1x CFast 2.0™

• PC & Macintosh

  Windows 7 (excl. Starter Edition) Windows 8 and Windows 10




  OS X v10.7-10.11

• Image Processing

  Digital Photo Professional 4 (RAW Image Processing)

• Other

  EOS Utility 3 (inc. Remote Capture ), Picture Style Editor

• Batteries

  Rechargeable Li-ion Battery LP-E19 (supplied) / LP-E4N / LP-E4

• Battery life

  Approx. 1210 shots (at 23°C)¹




  Approx. 1020 (at 0°C)

• Power saving

  Power turns off after 1, 2, 4, 8, 15 or 30mins

• Power Supply & Battery Chargers

  Battery charger LC-E19 (supplied), AC Adapter AC-E19, DC Coupler DC-E19, AC Adapter kit ACK-E4

PHYSICAL SPECIFICATIONS

• Operating Environment

  0 – 45 °C, 85% or less humidity

• Dimensions (WxHxD)

  158 x 167.6 x 82.6mm

• Weight (body only)

  Approx. 1340 g

ACCESSORIES

• Viewfinder

  Eyecup Eg, Eg-series Dioptric Adjustment Lens with Rubber Frame Eg, Anti Fog Eyepiece Eg, Angle Finder C

• Wireless File Transmitter

  Wireless File Transmitter WFT-E8




  Wireless File Transmitter WFT-E6

• Lenses

  All EF lenses (excluding EF-S / EF-M lenses)

• Flash

  Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)

• Remote Controller/ Switch

  Remote control with N3 type contact, Wireless Controller LC-5 and Speedlite 600EX-RT

• Other

  Hand Strap E2, Connect Station CS100
