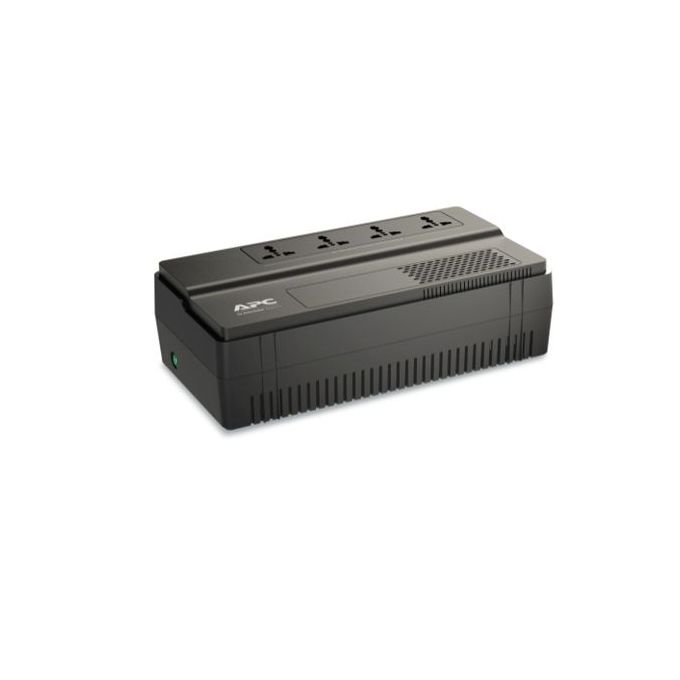

Apc Easy UPS BV 650VA/AVR With Universal Outlet - 230v / 375w

APC 650VA UPS Technical Specifications

Output

• Output power capacity: 375Watts / 650VA
• Max Configurable Power (Watts): 375Watts / 650VA
• Nominal Output Voltage: 230V
• Output Frequency (not synced): 50/60 Hz +/-1 Hz
• Topology: Line Interactive
• Waveform type: Stepped approximation to a sinewave
• Transfer Time: 6ms typical : 10ms maximum

Input

• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 5 Hz (auto sensing)
• Input Connections: IEC-320 C14
• Cord Length: 1.52meters
• Number of Power Cords: 1

Batteries & Runtime

• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Expected Battery Life (years): 3 – 5

Communications & Management

• Control panel: LED Status display with On Line : On Battery
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Physical

• Maximum Height: 92MM, 9.25CM
• Maximum Width: 165MM, 16.5CM
• Maximum Depth: 305MM, 30.5CM
• Net Weight: 4.5KG
• Shipping weight: 4.8KG
• Shipping Height: 237MM, 23.7CM
• Shipping Width: 143MM, 14.3CM
• Shipping Depth: 373MM, 37.3CM
• SCC Codes: 1073130433833 5

Environmental

• Operating Temperature: 0 – 40 °C
• Operating Relative Humidity: 0 – 90 %
• Operating Elevation: 0-1968.3meters
• Audible noise at 1 meter from surface of unit: 40.0dBA

Output power capacity 375Watts / 650VAOutput Connections (4) Universal Receptacle (Battery Backup)Nominal Output Voltage 230VNominal Input Voltage 230VInput Connections NEMA 5-15PCord Length 1.2meters
